MCC control panel for pharmaceutical industry

MCC control cabinet for pharmaceutical industry

prevnext

Look at all the big picture

MCC control cabinet for pharmaceutical industry

Product name:MCC control panel for pharmaceutical industry
Industry:Environmental protection industry
Product locationr:Wuxi, Jiangsu
Processing location:AiXun workshop
Drawing data:Design and draw according to process control requirements and BOM list of environmental protection industry.
Control mode:Control cabinet field manual control mode and remote PC control mode.

inquiry

Detail Intruduction

Configuration

· Schneider Low Voltage Electric;

· ABB inverter;

· Siemens S7-1500PLC;

· Siemens IO module;

·Siemens touch screen;

·Switching power supply;

·Others: Far East cable, Mingmelt fuse, etc.;

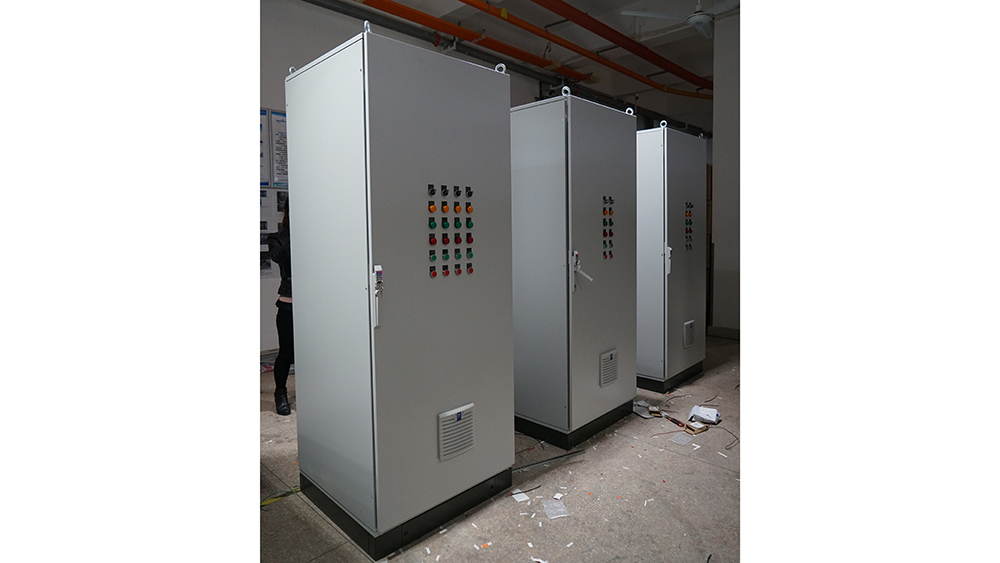

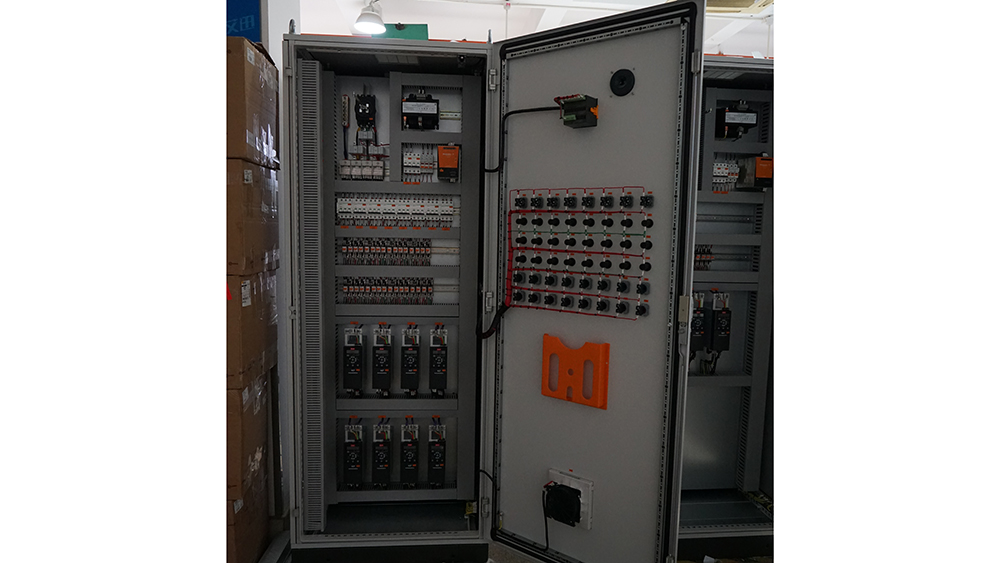

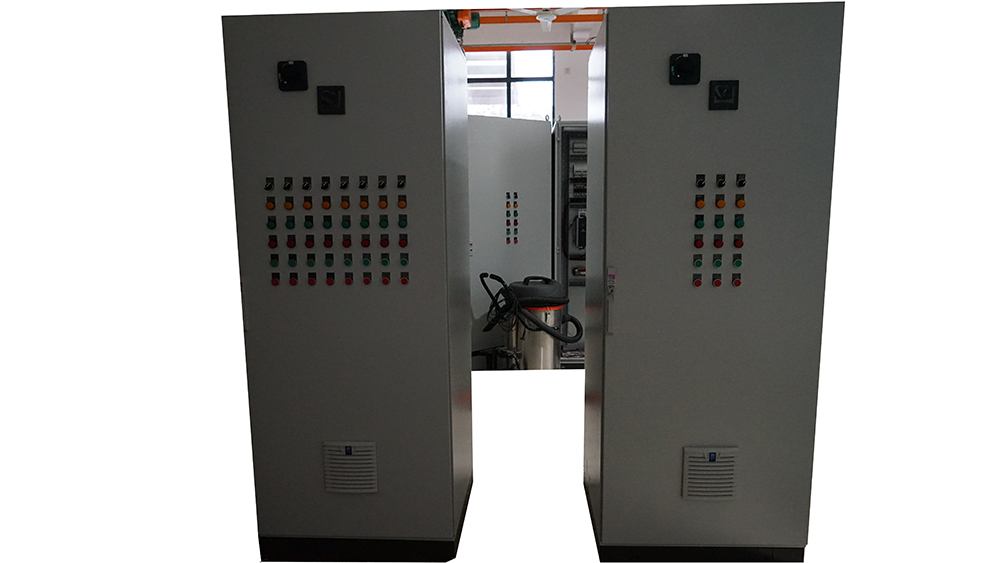

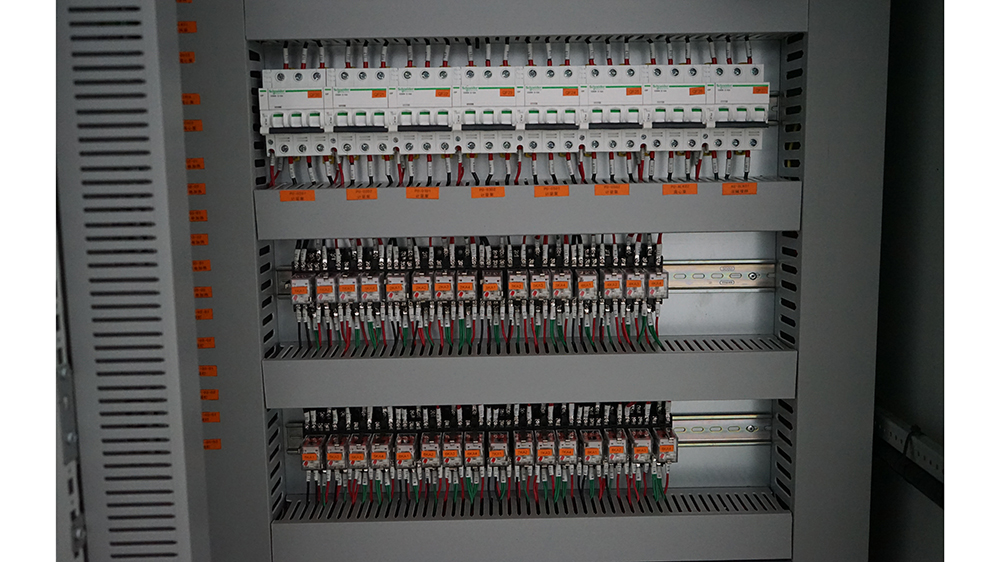

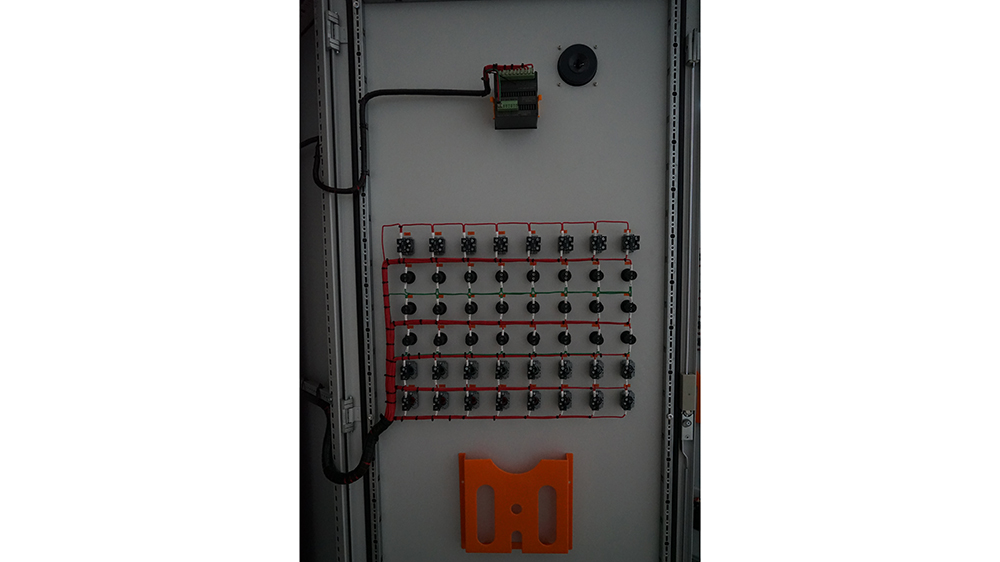

Real shot products

Parameter

Product Brand	AI XUN	Production time	February 2019
Product Name	Water plant water treatment control system	Product Number	WXAX1902-003
Product Material	Carbon steel	Product Packaging	crate
Product Color	Customizable	Customized Quantity	4

9ce5b2f8599c4246a239c9dc46a9a74c_22

9ce5b2f8599c4246a239c9dc46a9a74c_24

9ce5b2f8599c4246a239c9dc46a9a74c_28

9ce5b2f8599c4246a239c9dc46a9a74c_30

9ce5b2f8599c4246a239c9dc46a9a74c_20

Function

The water treatment control system is an automatic control system developed by Wuxi Aixun Automation for water plants, which carries out decentralized control and centralized management of equipment.Water treatment control system by the electrical cabinet, PLC cabinet, the IO ark, electromagnetic valve box, field control box and PC system, etc.The control system has the functions of control, protection, measurement, signal acquisition and fault record.

Product characteristics

Case material:Carbon steel;
Quality standard: GB/T19001-2016/ISO9001:2015

Purchase: MCC control cabinet for pharmaceutical industry
