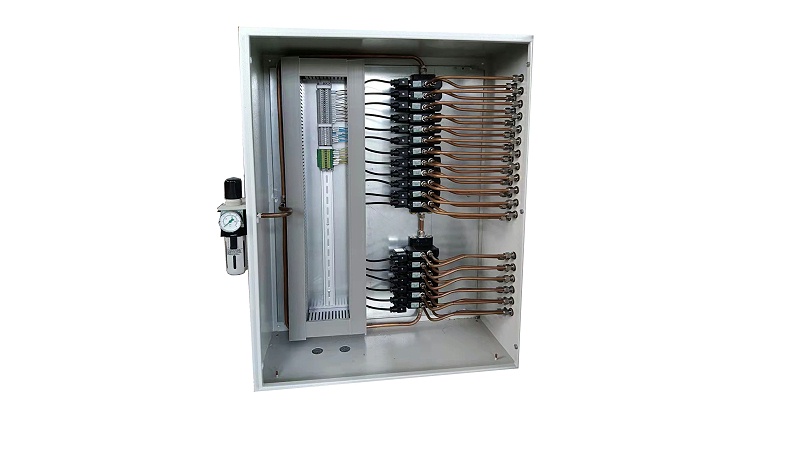

The design solenoid valve box is reserved with a reasonable spare solenoid valve, and installed on the bus plate, the spare solenoid valve air source must be closed in order to change the process in the future or to increase the demand for pneumatic valves. It can also be used for maintenance emergencies to provide work efficiency. The solenoid valve in the solenoid valve box is a stainless steel metal sealing spool valve sleeve structure, and the spool and valve sleeve are sealed without soft sealing or other materials to achieve the requirements of acid and alkali resistance, corrosion resistance, dust resistance, high and low temperature resistance.

Each valve position of the manifold board has the function of turning off the centralized exhaust separately. When a solenoid valve fails, it can be quickly switched to the standby valve. Reduce the subsequent on-site maintenance time and maintenance cost, greatly capture high work efficiency, and at the same time, the installation of the solenoid valve on the bus bar is fastened with a single screw, so that the site can be disassembled alone, and the gas of the solenoid valve is discharged outside the box, avoiding the influence of high pressure and water in the gas on the components in the box. In general, the traditional old-fashioned practice used by most system integrators or engineering companies is extremely inconvenient for future maintenance, and the total air source must be turned off when disassembly, affecting other normal valve work.

Solenoid valve box air supply is a single pipeline structure, equipped with double filter decompression module, double filter, one open and one standby to realize non-stop replacement of filter element, a combination of independently installed modules, manual automatic switching, three-position two-way, middle closed, a single manual valve port J to realize the main and standby filter pressure regulation switch, in order to achieve non-stop replacement of filter element. This box is not as easy to scale corrosion as the conventional design box with relatively low protection level, and there are hidden dangers. It affects the normal operation of the system. · It is made of 304 stainless steel plate with production technology. · Rainproof tank design and seal strip with polyurethane foam molding technology. · Sealing nut with hanging ear fixer is connected to the box. · The protection level of the box is above IP65. · It can prevent acid and alkali, corrosion and dust.
