Explosion-proof solenoid valve control box customization manufacturer - Wuxi Aixun Automation Technology Co., Ltd. for the chemical industry explosion-proof area customized production of a number of solenoid valve boxes.

The explosion-proof solenoid valve control box is designed and drawn according to the process control requirements and BOM list of chemical industry. The ASCO solenoid valve gate flameproof solenoid valve VCEFCM8551G301MO is centrally installed in the non-explosion-proof cabinet housing, and the cable is directly connected to the coil of the explosion-proof solenoid valve. The outlet air port of the solenoid valve box adopts 316 stainless steel integrated anti-leakage sleeve joint. Meet the explosion-proof requirements of chemical applications, this design scheme is not only applicable to the chemical industry, but also applicable to papermaking, thermal power, environmental protection and other industries, explosion-proof solenoid valve box control is controlled by remote PLC control cabinet or DCS control cabinet, the advantage of the solenoid valve box is easy to maintain, reduce the cost of on-site gas and cable, beautiful.

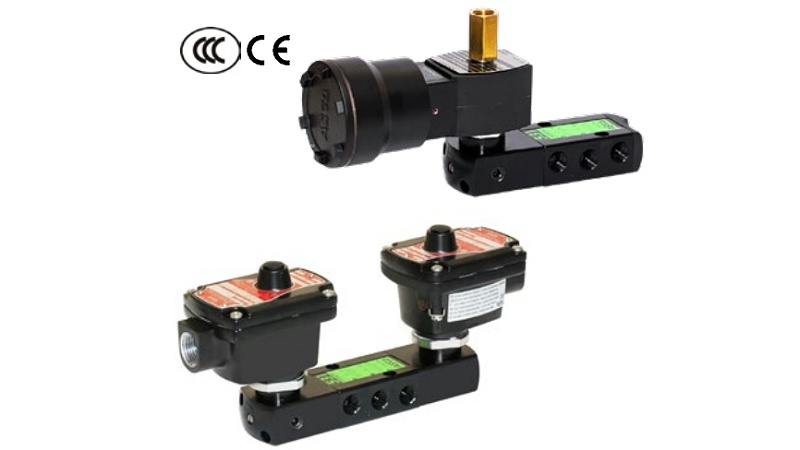

The explosion-proof solenoid valve control box adopts ASCO solenoid valve

Explosion-proof type: pouring and sealing

Control mode: Single coil

Function: two positions five

Power consumption Type: Low power

Solenoid valve model: VCEFCM8551G301MO

Solenoid valve features:
• Single coil slide valve,
• The solenoid valve is threaded with the air source, and NAMUR installation is adopted between the cylinder and the solenoid valve
• The same valve can be converted into a 5/2 or 3/2 normally closed valve through the adapter plate to control single or double acting cylinders
• All exhaust ports on the valve body can be connected to provide better protection, especially in sensitive areas such as clean rooms, pharmaceutical and food plants
• The valve body provides better protection and is not susceptible to external impurities such as liquid, dust and other interference (dust-proof structure)
• The valve can be changed to an external pilot type by changing the direction of the gasket, and the minimum working pressure difference is 0.
