Product Name: Explosion proof Electromagnetic Valve Box Control System
Industry sector: Chemical industry
Product location: Wuhu City, Anhui Province
Processing location: Aixun workshop
Processing time: August 2022
Drawing materials: According to the process control requirements and BOM list, use CAD software to design and draw.

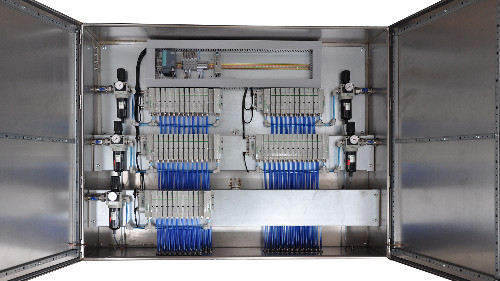

Function Description: The explosion-proof electromagnetic valve box control system adopts a double-layer structure (explosion-proof terminal box+stainless steel box), which isolates the air source from the power supply. The internal wiring terminals of the valve box will not retain water vapor, ensuring the dryness of the inside of the valve box; The explosion-proof solenoid valve is installed in a stainless steel box using a centralized manifold plate, which greatly extends the service life of the explosion-proof solenoid valve and makes it easy to replace it in case of failure, reducing maintenance work in the later stage.
Control method: Local valve manual button control, DCS upper computer control.
Configuration instructions:
1) Schneider low-voltage electrical (circuit breaker);
2) ASCO explosion-proof solenoid valve (PVG531 series solenoid valve);
3) Weidmuller wiring terminals;
4) Stainless steel control cabinet, explosion-proof stainless steel control cabinet;
5) Other: Far East cables, cable tray accessories, etc;
Cabinet material: solenoid valve box Control cabinet: 304 stainless steel (naturally drawn), overall 2.0mm

The explosion-proof electromagnetic valve box control system in the chemical industry has on-site valve manual button control and DCS upper computer control, which is easy to maintain and applied in industries such as biopharmaceutical power plants, paper mills, and petrochemicals.

Solenoid valve box design manufacturer: Wuxi AiXun Automation Technology Co., Ltd. has more than 10 years of automation experience, focusing on the production of automation control system, solenoid valve box, valve island bus control box and instrument box and other products. It is also an agent for EMERSON, ASCO, TOPWORX, GOswitch, Numatics, Aventics, Dwyer, GVT, SUNTEX Instruments. If you are interested in our products, welcome to inquire.
