Garbage deodorization control system automatic control panel

Product name:Food waste deodorization control system
Industry:Environmental protection industry
Product locationr:Jiangsu Province
Processing location:AiXun workshop
Drawing data:Design and draw according to process control requirements and BOM list of kitchen waste deodorization control system.
Control mode:PLC automatic control/touch screen manual operation.
inquiry
  • Detail Intruduction

Configuration

· Schneider Low Voltage Electric;

· Emerson DCS;

· Omron relay;

· Carbon steel double-door cabine;

·Siemens SMART 200PLC;

·MOXA switch;

·Others: Far East cable, Mingmelt fuse, etc.;

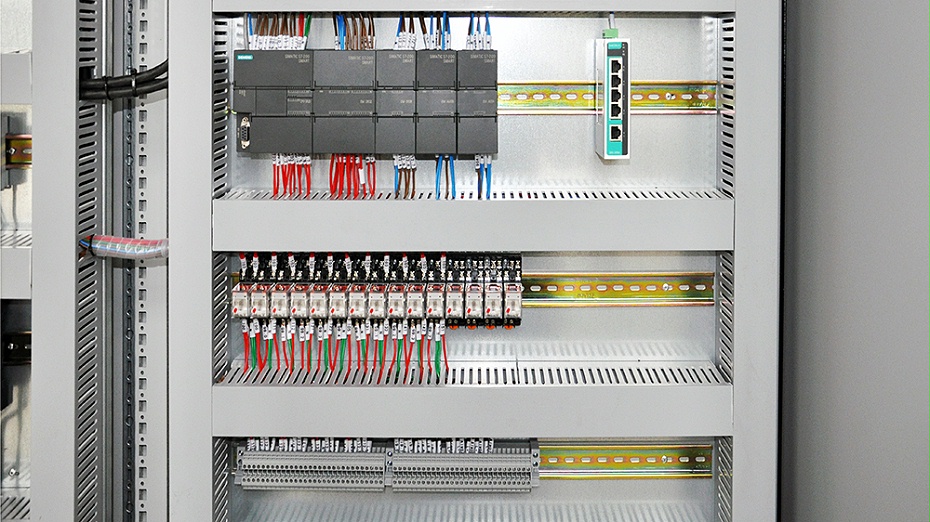

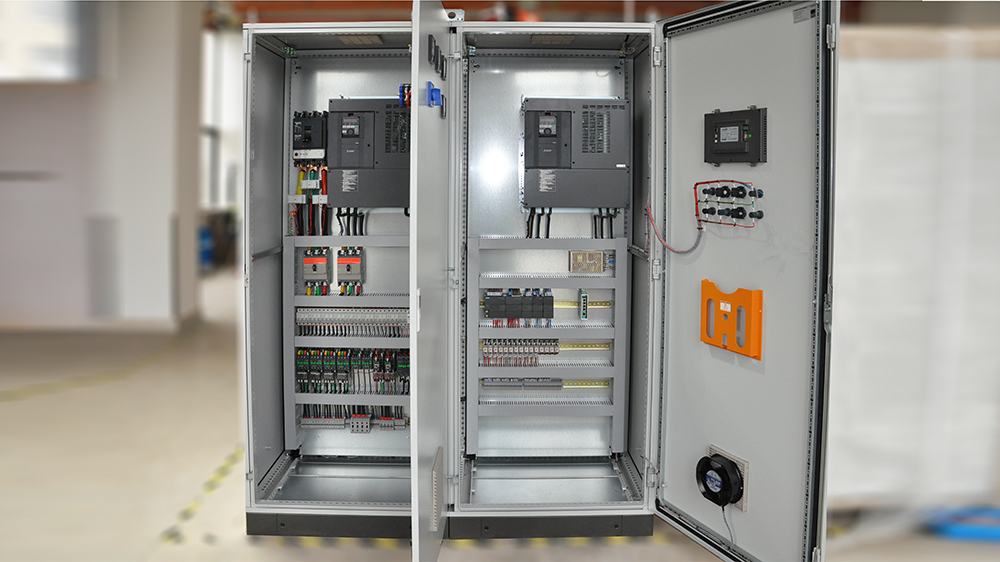

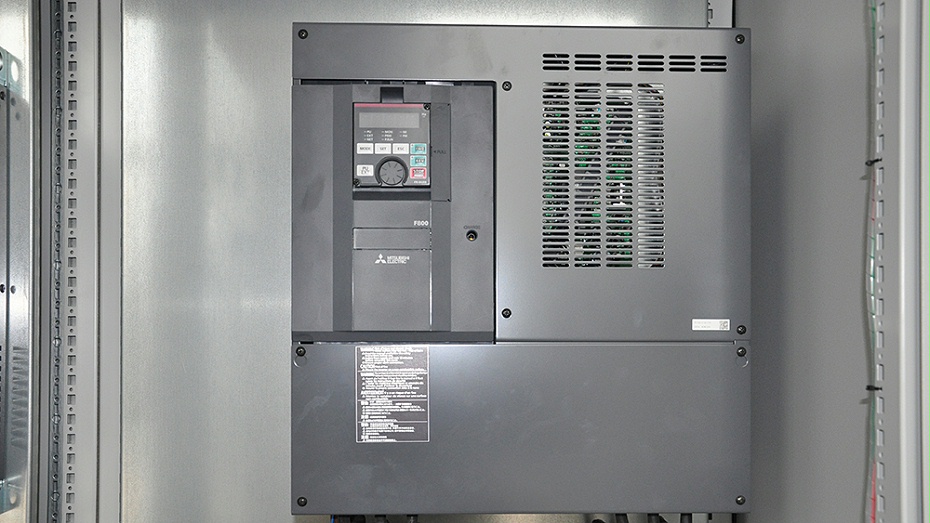

Real shot products

Parameter

Product Brand AI XUN Production time February 2017
Product Name

Food waste deodorization control system

Product Number WXAX1702-003
Product Material Carbon steel spray Product Packaging crate
Product Color Customizable Customized Quantity 3


Electrical control panel

Electrical control panel

Electrical control panel



Function

The odor sources from the kitchen waste pretreatment workshop and the waste oil treatment workshop are collected by the air collector, and the negative pressure generated by the fan is pumped to the deodorization system for treatment.

Product characteristics

Case material:Carbon steel spray;
Quality standard: GB/T19001-2016/ISO9001:2015

Purchase: Garbage deodorization control system automatic control panel

  • *
  • *
  • *
