The high-temperature filtration device control cabinet adopts stainless steel cabinet, Schneider low-voltage electrical (circuit breaker), switch power supply, touch screen, Siemens SMART200 PLC to achieve on-site valve plate manual button control, and DCS upper computer communication control.

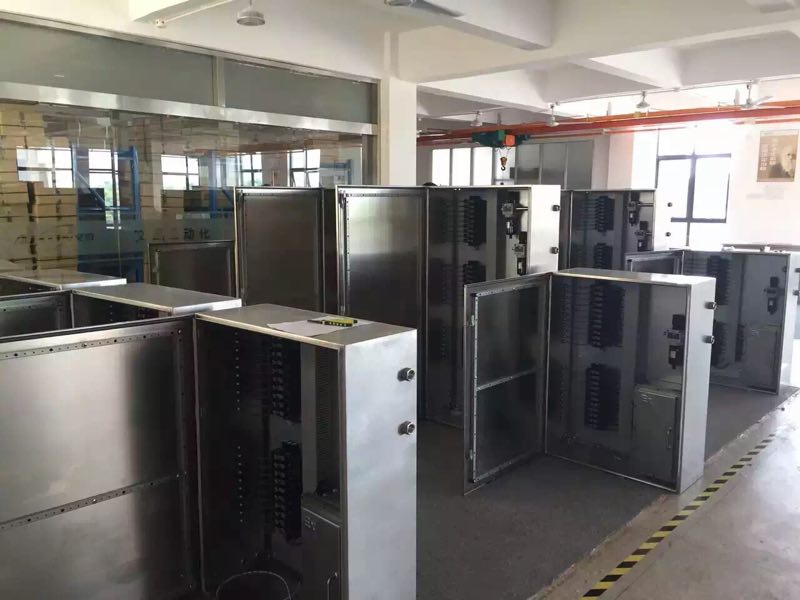

Application case of automatic control cabinet:
Product name: High temperature filtration assembly PLC automatic control cabinet
Industry sector: Machinery industry
Product location: Jiangsu Province
Processing location: Aixun workshop
Processing time: June 2018
Drawing materials: Design drawings according to the process control requirements and BOM list of the high-temperature dust collector control cabinet.
Function Description: The operation of a high-temperature dust collector consists of a cleaning process and a unloading process. The control system is equipped with manual/automatic control modes. The selection switch is set to "automatic" and "timed" positions. The cleaning cycle and pulse interval are set through the touch screen. The pulse valve blows the dust at the set time. After the blowing time is completed, the ash unloading process enters. The pneumatic gate valve on the upper layer of the hopper is opened, and the high-temperature electromagnetic valve is opened to spray high-temperature gas into the dust collector. The dust falls into the hopper, and the number of blowing times is controlled by the program. After completing the number of blowing cycles, close the gate valve on the upper layer of the hopper and enter the cooling waiting process. After the material cools to room temperature, open the gate valve on the lower layer of the hopper. Empty the material from the hopper and proceed to the next ash cleaning and unloading cycle.
Control method: Local valve manual button control, DCS upper computer communication control
Cabinet shell material: stainless steel
Quality standard: GB/T19001-2016/ISO9001:2015

PLC automatic control cabinet configuration instructions:
Schneider low-voltage electrical (circuit breakers, contactors)
Omron relay
touch screen
Weidmuller wiring terminals
Siemens SMART200PLC
Customized integrated stainless steel plate joint
Carbon steel spray control cabinet
Other: Far East Cable, etc
