VOC Waste Gas Treatment Control Panels

Industry Field: Chemical Industry
Application: Shanghai China
Manufacturer: Aixun
Date: Nov. of 2019
Drawing Information: according to the process control requirements and list of BOM, adopt CAD software design, SMART software design and programming
Control: manual/automatic control on HMI
inquiry
  • Detail Intruduction

Configuration

· Schneider low voltage electrical appliance (breaker, thermal overload, relay, button);

· Siemens S7-200 smart;

· Siemens HMI;

· ABB ACS530 frequency converter;

· Chenzhu signal isolator;

· Weidnuller terminal blocks;

· Copy Rittal housing;

· Dwyer differential pressure transmitter;

· Others: Far East cables, MIRO fuse, CHINT auxiliary materials Etc.

Real shot products

Parameter

Product Brand AI XUN Custom Processing ODM/OEM
Product Name VOC Waste Gas Treatment Control Cabinet Product Number AXPLC-001
Product Material Carbon Steel Product Packaging Wooden Box
Product Color RAL7035 Customized Quantity 1

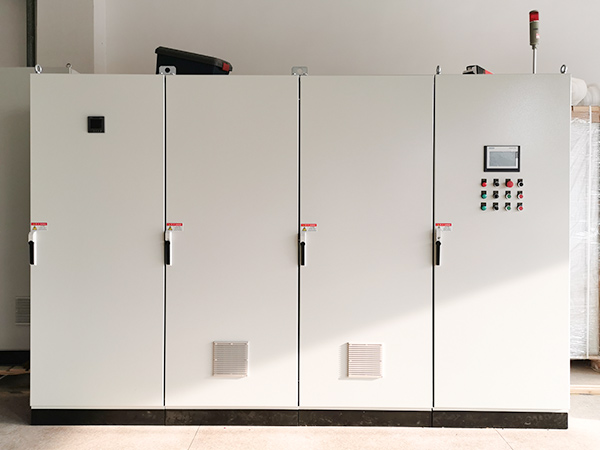

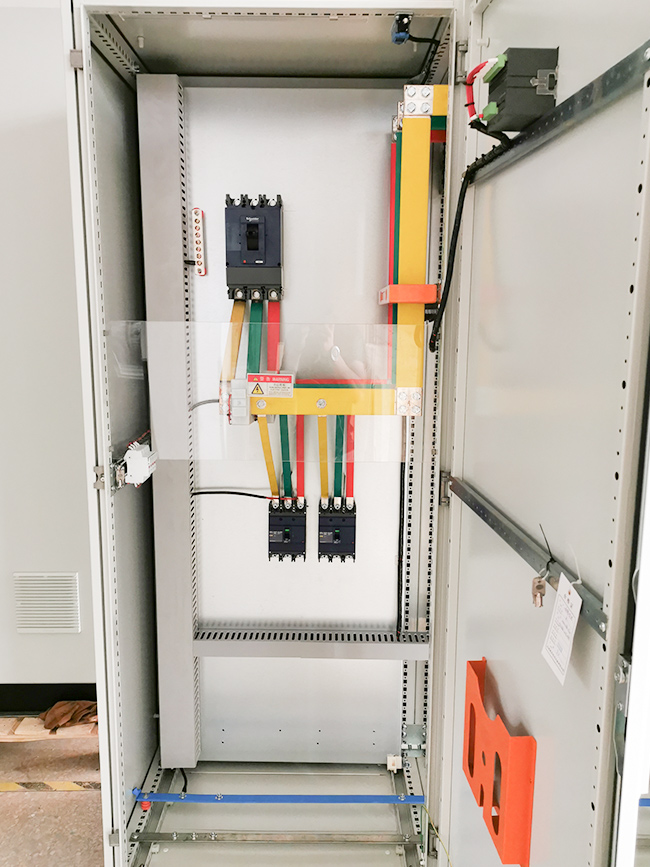

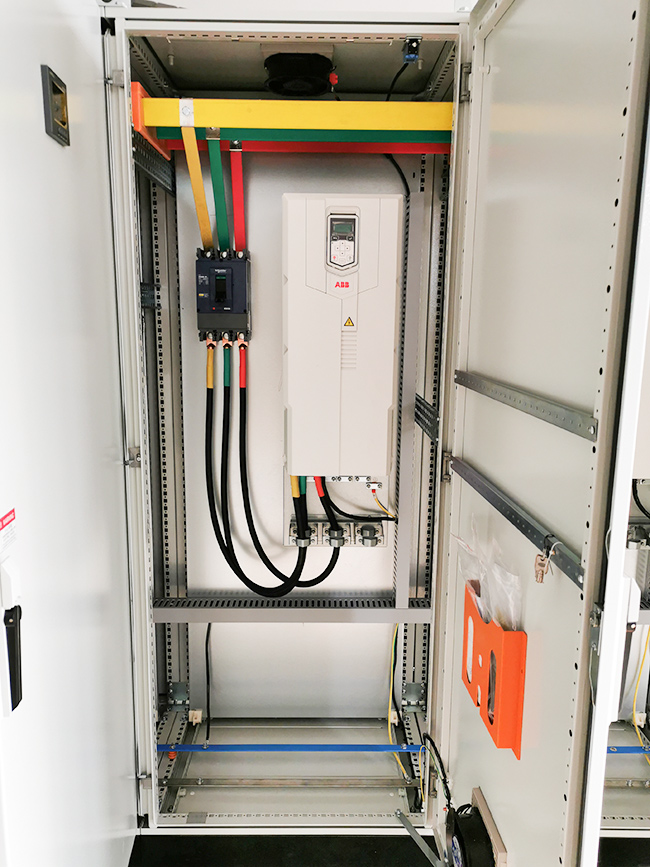

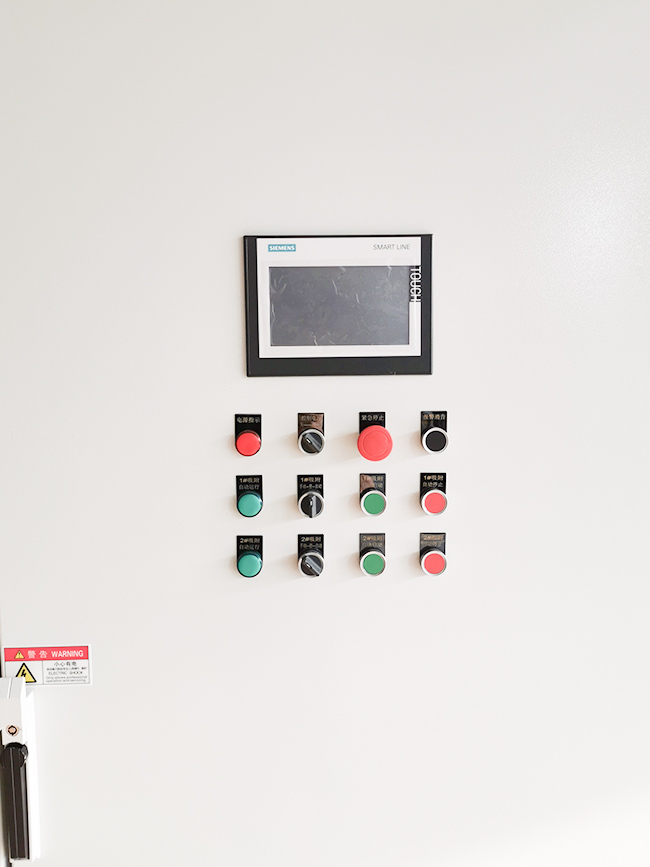

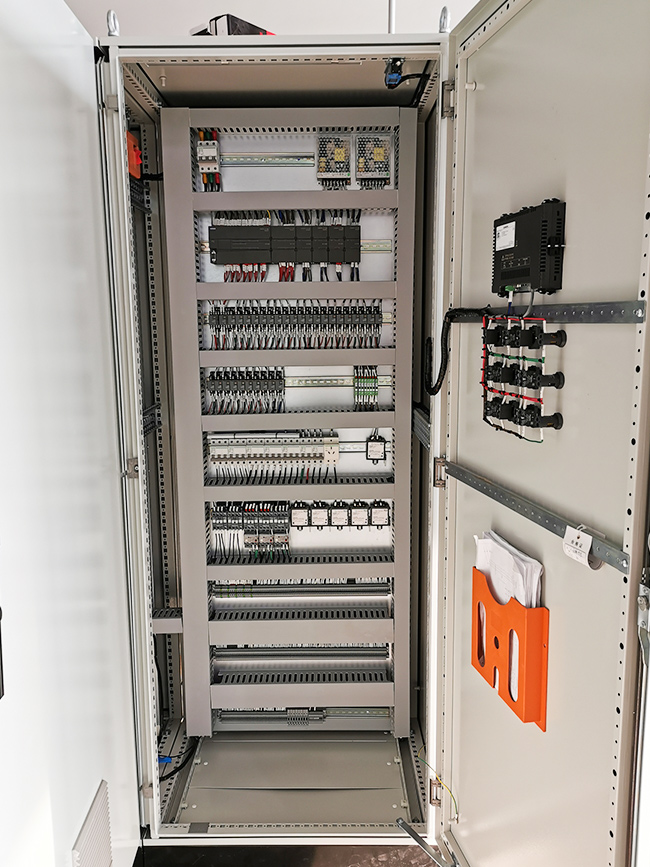

VOC Waste Gas Treatment Control Cabinet
VOC Waste Gas Treatment Control Cabinet
VOC Waste Gas Treatment Control Cabinet
VOC Waste Gas Treatment Control Cabinet

Function physical absorption method is often used in industrial production, the waste gas lead into absorption liquid for absorption and purification, after absorption liquid is saturated, heating、parsing、condensation and other treatment, recover the heat .In the case of low concentration, low temperature and large wind volume, the absorption method can be trample, but it needs to be equipped with heating analytical recovery device, and the investment is large. It relates to a method for oil curtain and water curtain to absorb paint mist commonly used by paint coating enterprises.


Product characteristics

1. Housing material· MCC housing: carbon steel and surface powder painting;
· Housing thickness: 2mm;
· Color: RAL7035
· PLC housing: carbon steel and surface powder painting;
· Housing thickness: 2mm;
· Color: RAL7035

2. Quality standard GB/T19001-2016/ISO9001:2015
