Solenoid Valve Control Box

Product name:Solenoid Valve Control Box
Industry:Paper Industry
Product locationr:JIANG SU Province
Processing location:AiXun workshop
Drawing data:It is designed and drawn with CAD software in accordance with the process control requirements and BOM list for the solenoid valve box.
Control mode:Remote control via PLC or DCS system

inquiry Email

Detail Intruduction

Configuration

· ASCO 531 Series Solenoid Valves;

· Aventics Filter Regulator;

· Schneider Miniature Circuit Breakers (MCB);

·Weidmüller Terminal Blocks;

·Stainless Steel Ferrule Fittings;

Individual Shut-off Manifold·

·Stainless Steel Cabinet Enclosure

·Others: Wiring ducts, DIN rails, cables and other auxiliary materials

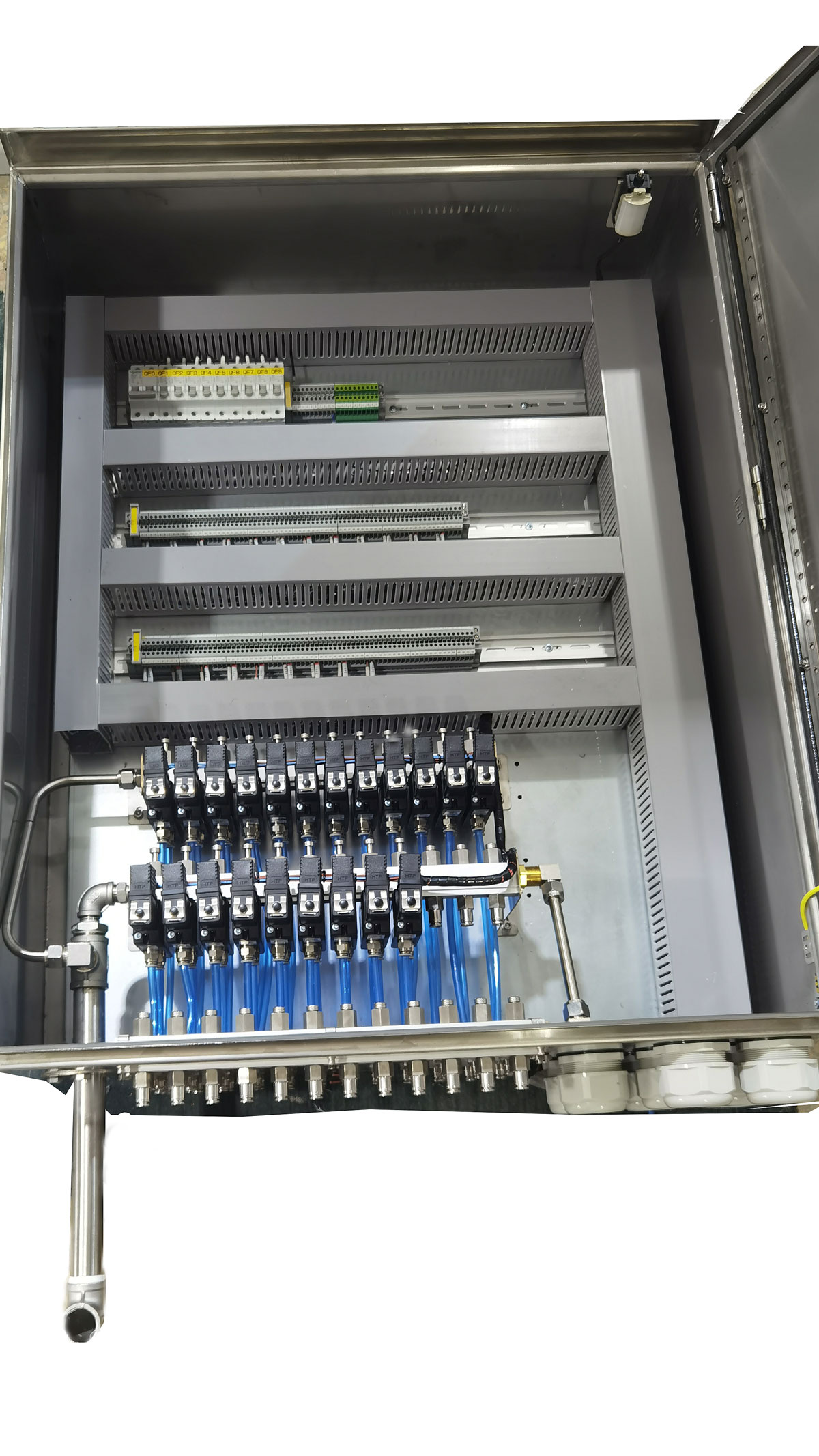

Real shot products

Parameter

Product Brand	AI XUN	Production time	Apr2026
Product Name	Solenoid Valve Control Box	Product Number	WXAX2603-26
Product Material	stainless steel	Product Packaging	crate
Product Color	Customizable	Customized Quantity	6

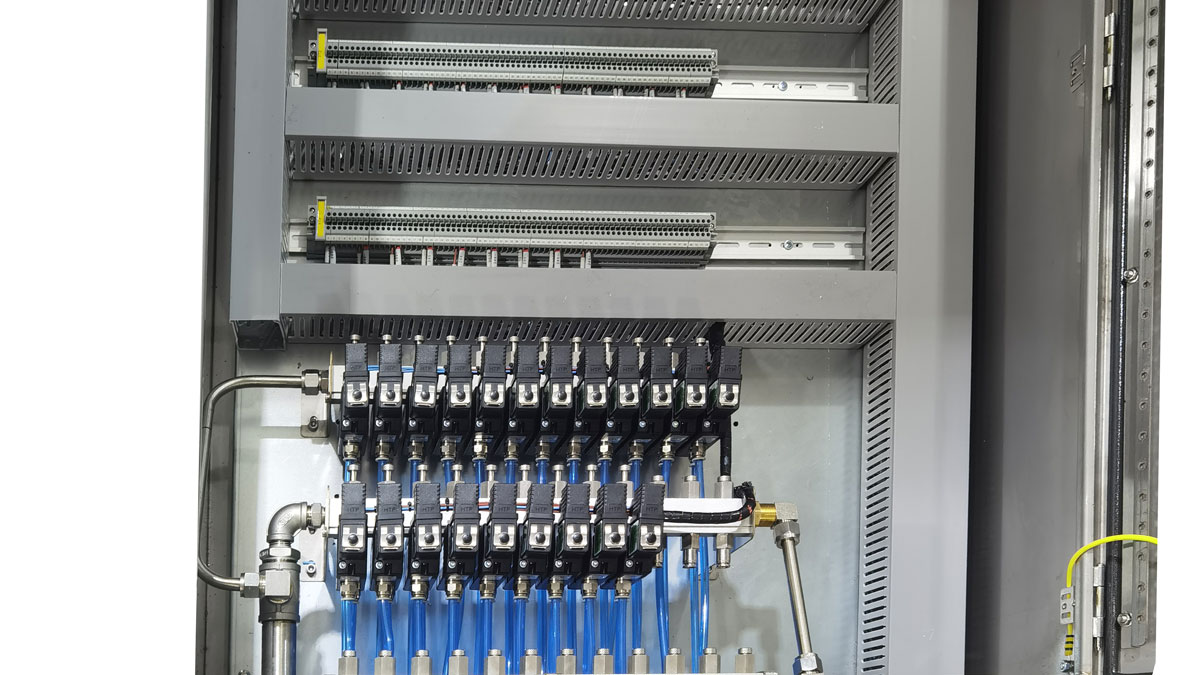

IMG_20260330_103313

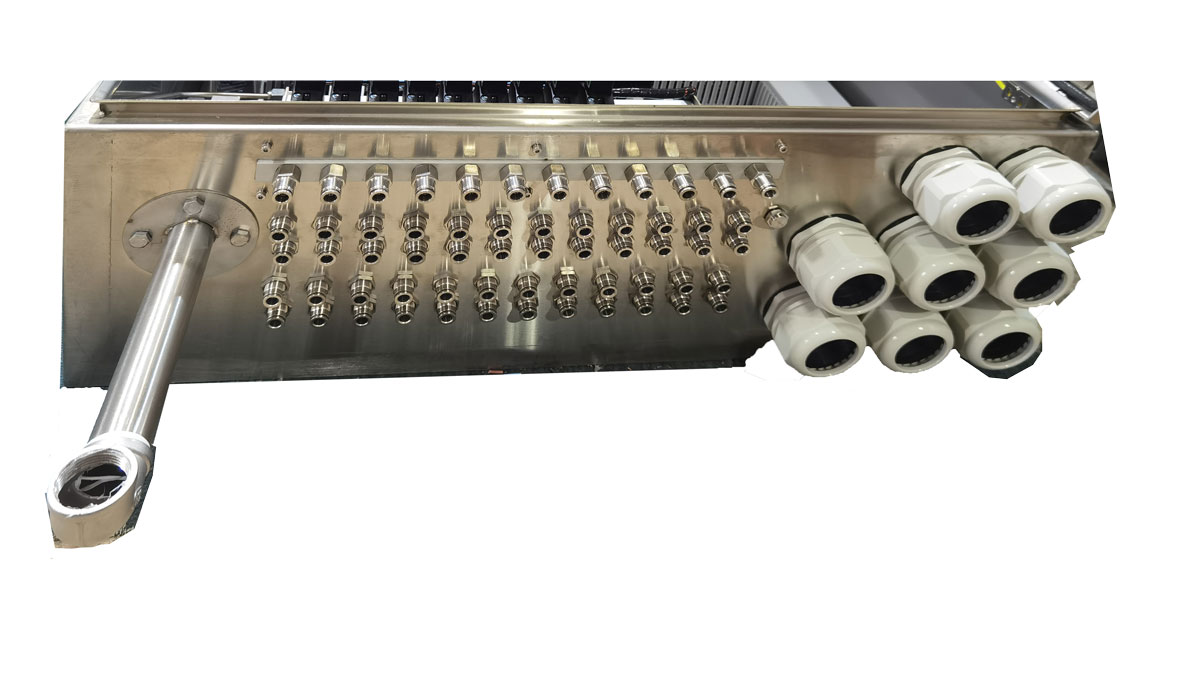

IMG_20260330_103229

Function

The Solenoid Valve Control Box:Single solenoid valves control the movement of the valve core by switching the electric current of the solenoid coil and the action of the spring, so as to open and close the valve. When the coil is energized, the spring compresses; when the coil is de-energized, the spring extends.

Pneumatic valves use compressed air as the power source, converting input control signals into pneumatic signals that act on the pneumatic actuator to drive the valve, achieving continuous regulation or on-off action. Pneumatic control valves can be equipped with various accessories to realize multiple control functions and meet various special requirements of the control system. In other words, accessories make the functions of pneumatic control valves more complete, reasonable and comprehensive.

Therefore, the main reason for using a solenoid valve box is that it can reduce the power supply and control wiring for each solenoid valve, while providing an electrical control circuit for the centralized control system. Only air pipes need to be laid to the pneumatic equipment, making it especially suitable for pneumatic control systems under harsh working conditions.

With advantages such as reduced wiring connections, adaptability to harsh environments, improved system scalability, and ease of maintenance, modification and upgrading, the solenoid valve box has become an indispensable and important component in industrial automation control systems.

Product characteristics

Case material:Stainless steel ;
Quality standard: GB/T19001-2016/ISO9001:2015

Purchase: Solenoid Valve Control Box

Keywords: Pneumatic Control Cabinet PLC Solenoid Valve AI XUN

: Pneumatic valve control cabinet using ASCO solenoid valve

: Pneumatic Control Cabinet

Product name:Pneumatic Control Cabinet
Industry:environment protection industry
Product locationr:JIANG SU Province
Processing location:AiXun workshop
Drawing data:Design and draw according to process flow and process control requirements.
Control mode:DCS upper computer communication control.

: Field handling panel

Cabinet shell:Witto, Combe, etc. Can provide carbon steel spray, stainless steel, stainless steel spray, AE box, GGD, assembly cabinet, chest of drawers, explosion-proof box and so on
Accessories:Schneider /ABB, Mitsubishi partners, Weidmuller/Phoenix agents supply terminal, electrical components according to customer designated brand
Wiring:Wire and cable are taken from the Far East cable, layout design is reasonable, beautiful wiring
Manufacturing:The company has professional electrical engineers design, programming, production, commissioning, installation
Professional:For many years engaged in electric power, chemical, environmental protection, painting line, automatic production line and other industries, rich experience, excellent production, save time and effort for customers!

: Instrument/Metertesting Cabinet

Industry Field: Chemical Industry
Application: Suzhou of Jiangsu province China
Manufacturer: Aixun
Date: Nov. of 2018
Drawing Information: according to the process control requirements and list of BOM, adopt CAD software design.
Function: differential pressure transmitter monitoring differential pressure value of equipment on site, the transmitter far transmit the signal, used in explosion proof area.
Control: 4-20mA

: Dewatering bin pneumatic solenoid valve control cabinet

Product name:Dewatering bin pneumatic solenoid valve control cabinet
Industry:Natural gas energy industry
Product locationr:Jiangsu Province
Processing location:AiXun workshop
Drawing data: According to process control requirements and BOM list, use drawing software to design drawing.
Control mode:Control cabinet field manual control mode and remote DCS control mode.

: Customized valve terminal control cabinet for power generation projects
