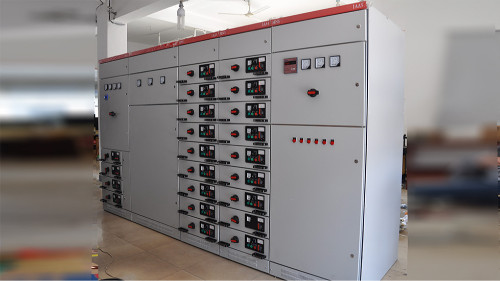

What are the main aspects of electrical control system? Electrical control systems are widely used in industry, but there are still many people who do not know which aspects of electrical control system integration are mainly included, so what aspects of electrical control system integration are mainly included? Many customers will be interested in purchasing this product, below, Ai Xun from the following 6 points for everyone to answer.

(1) Power supply circuit. The power supply of the power supply circuit has a variety of AC380V and 220V.

(2) Protection circuit. The working power supply of the protection (auxiliary) circuit has a variety of single-phase 220, 36V or DC 220, 24V, etc., for short circuit, overload and voltage loss protection of electrical equipment and lines, and is composed of fuses, thermal relays, voltage loss coils, rectifier components and voltage regulator components.

(3) Signal loop. The circuit that can reflect or display the normal and abnormal working status information of the equipment and line in time, such as different color signal lights, different sound audio equipment, etc.

(4) Automatic and manual directions. In order to improve work efficiency, electrical equipment is generally equipped with automatic links, but in the installation, debugging and emergency handling, the control line also needs to set manual links, through the combination of switches or transfer switches to achieve automatic and manual conversion.

(5) Brake stopping circuit. Cut off the power supply of the circuit, and take some braking measures to make the motor quickly stop the control link, such as energy consumption braking, power reverse braking, reverse pull braking and power generation braking.

(6) Self-locking and blocking circuits. After the start button is released, the line remains energized, and the electrical link that the electrical equipment can continue to work is called the self-locking link, such as the dynamic contact of the contactor is connected in series in the coil circuit. Two or more electrical devices and components, in order to ensure the safe and reliable operation of the equipment, only one power start, the other can not power start the protection link, called the lock link. For example, the breaking contacts of two contactors are connected in series in each other's coil circuit.
