The Control System Of Waste Alumina Ball Rotary Kiln with Accessory Equipment

The low voltage control cabinet system used for onsite and remote operation of the feeding system, rotary kiln, secondary combustion chamber, dust extraction and tail fume treating equipment of the equipment.
Project introduction

Matching low voltage control cabinet and upper computer system for waste alumina ball rotary kiln.

Project requirement

The low voltage control cabinet system used for onsite and remote operation of the feeding system, rotary kiln, secondary combustion chamber, dust extraction and tail fume treating equipment of the equipment.

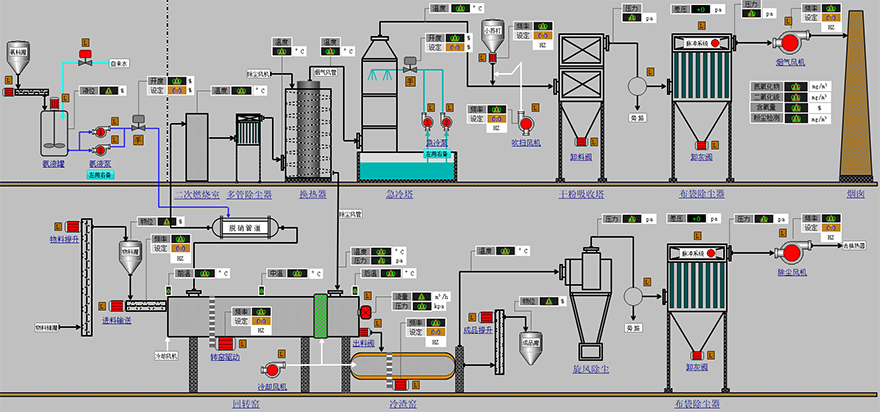

The control system adopts Siemens S7-1500 as controller, ET200SP as IO slave station, wincc7.5 as monitoring software for upper computer, realize the remote monitoring and operating of equipment, equipment operating and operating date recording.

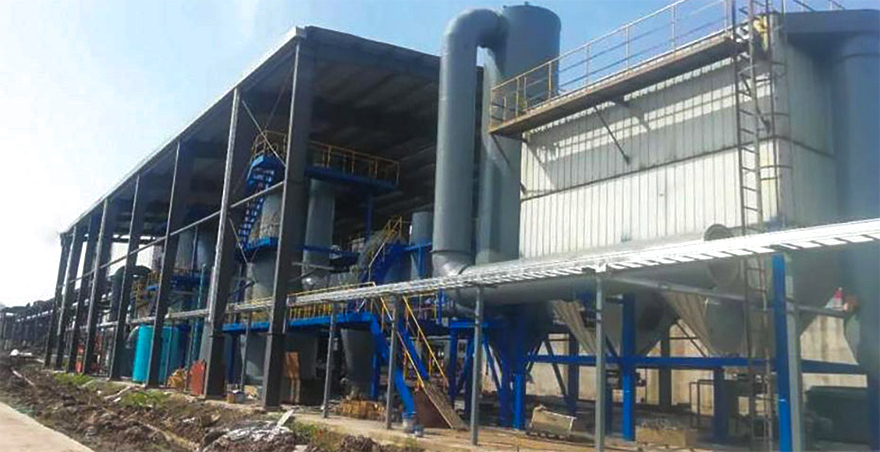

The control system of waste alumina ball rotary kiln with accessory equipment

Plan description

Company set up a project team; make the technical communication with customer in time. According to the actual situation of the site, given the solution of control system after discussed.

Our company design to meet the equipment normal operation, reliable interlock, easy maintenance and other requirements of the plan. With many years of experience in the control system and operating system of various industries, our company has present more feasible suggestions on the control system and operating system of the equipment to ensure the safety of the production of the equipment.

The control system of waste alumina ball rotary kiln with accessory equipment

Plan advantage

Our company has professional technical team,with many years’ experience in control and operating system in variety of industries Low voltage control cabinet fitted button junction box on site for on site /remote operation button and status indication, operation and maintenance more convenient.
