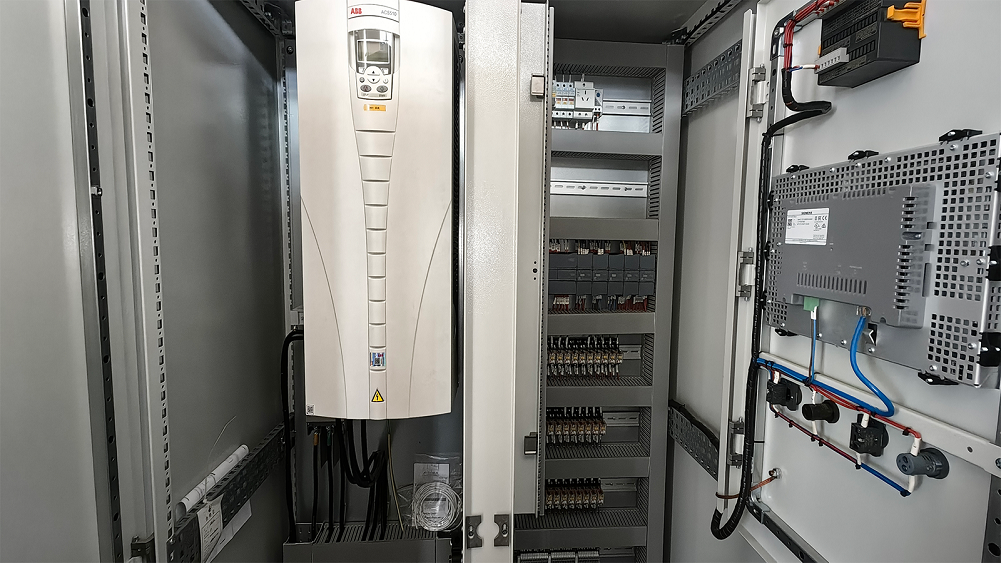

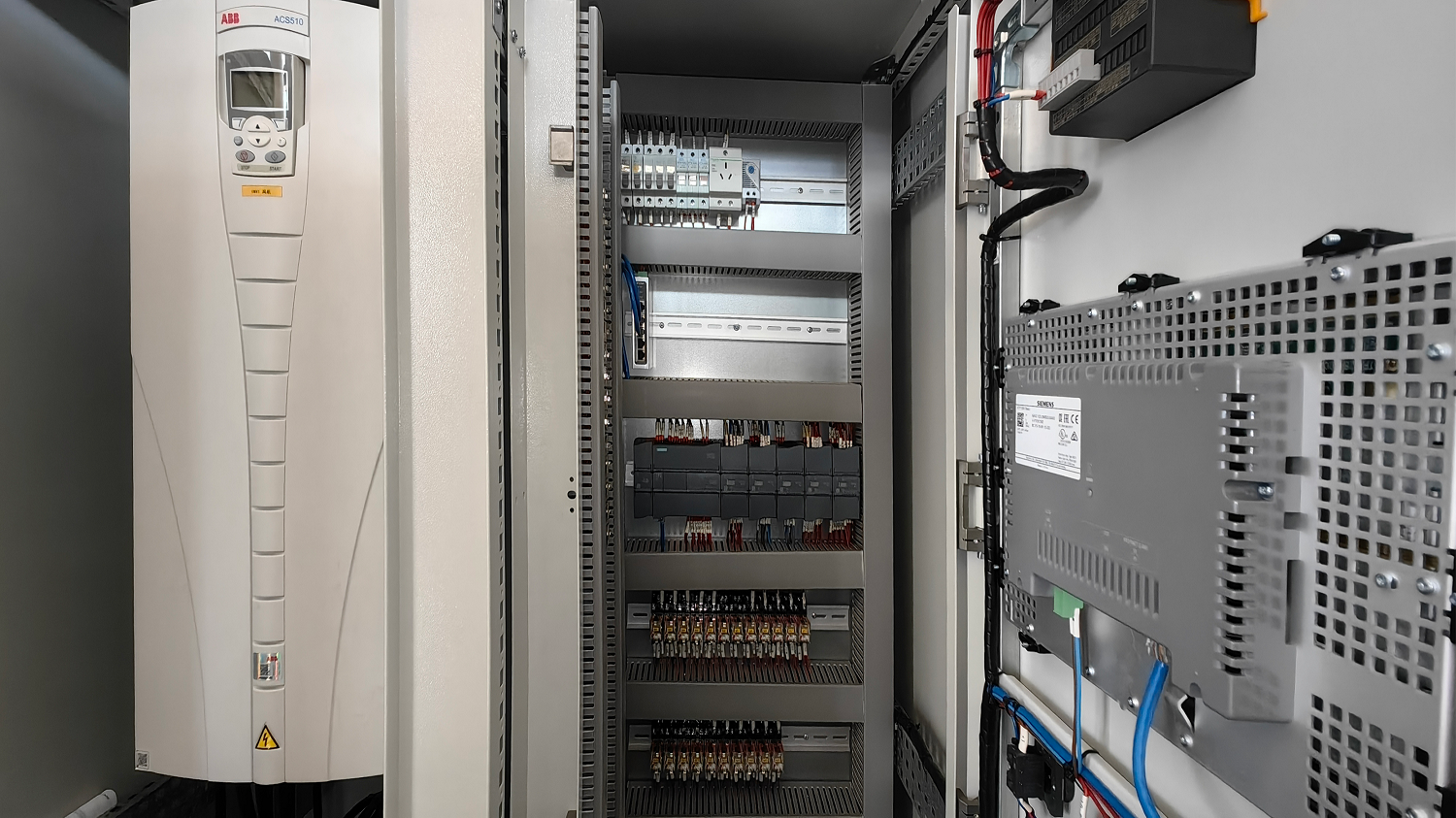

Product Name: Electrical Control Cabinet for Dust Removal System in Silicon Industry (No.1 Dust Removal System, Room 4)
Drawing materials: According to environmental requirements and BOM list, CAD software is used for design and drawing.
Function Description: This product was independently designed by Aixun. After multiple negotiations with the customer, this control system was adopted. There are mainly PLC connected to the upper computer and expansion modules. This product can effectively reduce the large amount of silicon content generated during the production process and improve the air purification ability. The dust removal efficiency and ability to handle dust can be set according to the actual situation on site. In addition, this system has a clear appearance, is clean and tidy, and is convenient for customers to maintain and clean on site. The process flow is simple and practical. This system is controlled by a complete PLC system. Can ensure the safe and reliable operation of the dust removal system based on the operating parameters of the entire system.
Control mode: local manual/automatic control, DCS upper computer communication control.
Configuration instructions:
1) Schneider low-voltage electrical (circuit breakers, contactors, etc.);
2) Siemens PLCs7-1200;
3) Siemens touch screen;
4) ABB frequency converter (55kw);
5) Weidmuller wiring terminals;
6) Chnt temperature control switch;
7) Omron intermediate relay;
8) Other: Far East cables, cable tray accessories, etc;
Electrical Control Cabinet design manufacturer: Wuxi AiXun Automation Technology Co., Ltd. has more than 10 years of automation experience, focusing on the production of automation control system, solenoid valve box, valve island bus control box and instrument box and other products. It is also an agent for EMERSON, ASCO, TOPWORX, GOswitch, Numatics, Aventics, Dwyer, GVT, SUNTEX Instruments. If you are interested in our products, welcome to inquire.
