The price of dual power bus valve island control box for thermoelectric industry applications depends on the configuration and the choice of control mode.

Take a thermal power project we did in Guangzhou before, the first technology will be designed according to the thermal power industry process control requirements and BOM list, the control mode will be selected, the local valve plate manual button control, DCS upper computer communication control. Secondly, the selection of raw materials, due to the on-site environmental factors in the thermal power industry, the material of the cabinet shell will be 304 stainless steel. Including the gas pipe joint in the cabinet, the sleeve joint and so on will also use stainless steel, especially the sleeve joint, not only to consider the material, we also need to pay attention to his degree of connection, his quality will directly affect the ventilation effect of the gas pipe connection in the cabinet and outside the cabinet, we generally choose to use non-standard customized integrated stainless steel double sleeve joint. Low-voltage electrical switching power supply should be considered with the well-known ----- name ---- degree brand, wiring terminals, cables, circuit breakers, wiring configuration according to the actual design requirements. Finally our core raw material selection will use ASCO bus valve island -G3 series.

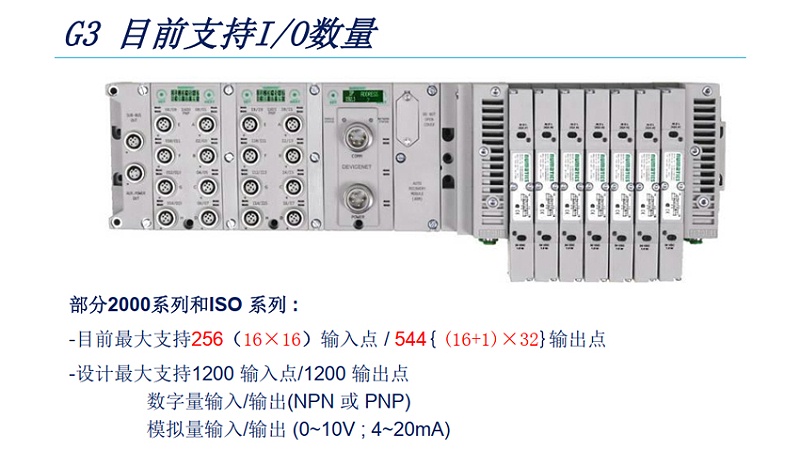

ASCO bus valve island Features:

Parameter display and setting
1. Network address (IP address, subnet mask)
2. Baud rate setting
3. I/O capacity setting
Provide diagnostic information
1, self-diagnosis function (Output & I/O)
2. Network fault diagnosis
3. Module fault diagnosis
4, short circuit diagnosis (I/O & Sub Bus)
5. Firmware version display
6. Node & I/O voltage alarm
7, low voltage alarm (<19VDC)
8, power loss alarm (Valve/Output)
Advanced function setting
1, screen brightness display setting

2. Restore factory Settings

The special module is used to supply power to the valve group to achieve power failure protection. It is also possible to remove or replace the module in the absence of power.

The automatic recovery module protects network configuration parameters in the event of a circuit accident and automatically saves or downloads network configuration parameters to the service component module to reduce downtime.

The advantage of the G3 bus valve island in the application of chemical water treatment in power plants is that it can be used for a long time and can be branched. Modular components, metal sealed solenoid valves

Wuxi Aixun Automation Technology Co., Ltd. is engaged in automation control design and production processing. For a long time, Ixun Automation has been in line with the concept of "listening to customer needs, thinking solutions together with customers, and trying to solve problems for customers", serving customers in various industries, in accordance with the modern enterprise management mechanism "honesty as the fundamental, quality as the focus, customer-centric".
Aixun Automation is looking forward to the support of new and old customers as always! Sincerely hope to work with you hand in hand, common development
